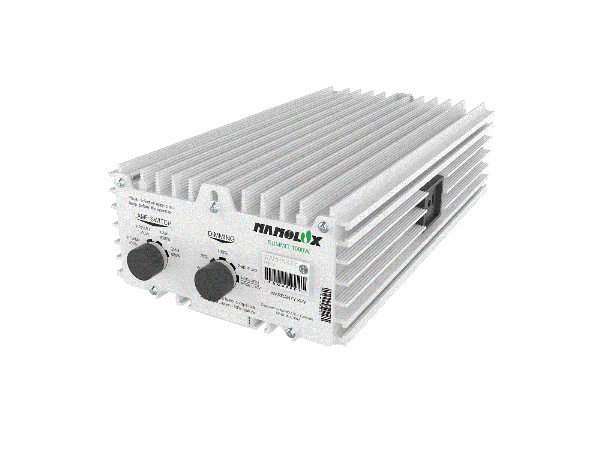

DE SUMMIT 1000W BALLAST
$450.00
DE SUMMIT 1000W BALLAST
Operates all lamps between 600W-1000W (HPS, MH, CMH)
7 types of lamps are compatible
HPS 1000W HPS 600W
MH 1000W MH 600W CMH
1000W CMH 630W CMH 315Wx2
.gif.aspx?width=400&height=300)
SLC 0-10V and APP compatible
.gif.aspx?width=400&height=300)
• The unique Nanolux full digital technology is applied to the ballast
with accurate HID lamp performance.
• Compatibility design: it can be compatible with HPS, MH and CMH lamps
(HPS1000W/600W; MH1000W/600W; CMH1000W/630W/315Wx2).
• The low frequency of output is friendly for lamps, with longer lamp lifespan.
• Power Factor/Efficiency/THD - ≥0.97/≥95%/ ≤10%
• Voltage/Current/Frequency - AC 208V/220V/230V/240V-6.5A/5.9-5.1A-50/60Hz
• PPF - 2100μmol/s (Double ended HPS 1000W)
• Protection - Open/short circuit protect on, bulb faulty protect on, bulb aging
protect on, input under voltage protect on, over-temperature protect on
• NCCS & SLC 0-10V dimming function is applied to simulate sunlight.
• Output Power - DE-HPS/MH1000W: 500~1100W DE-HPS/MH600W: 300~660W
DE-CMH1000W: 750~1000W/DE-CMH630W: 473~630W
• Dimming - HPS/MH: Super-Lux,100%,75%,50%; CMH: 100%,75%
Choose between fixture or remote reflector
